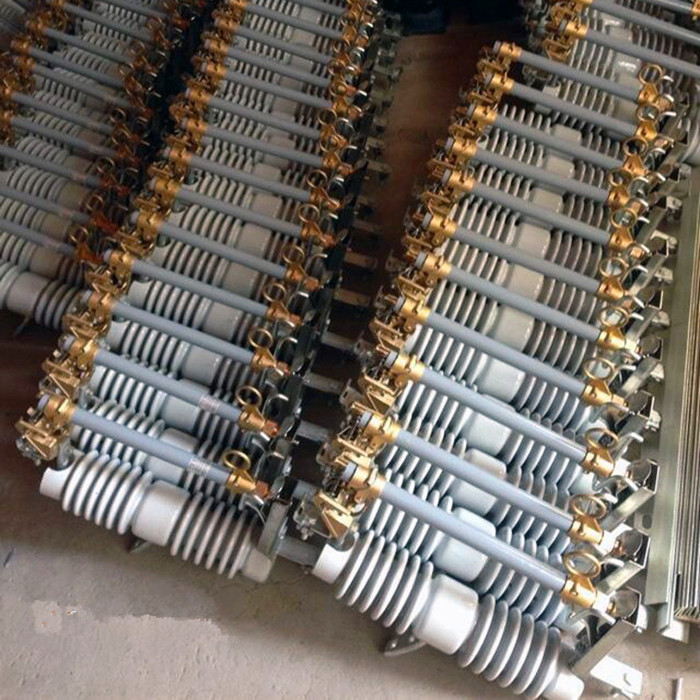

RW12 H.V.Drop-out Fuse Cutout
Introduction

Type
Rated voltage kv
Rated current A
Breaking current A
Impulse voltage bil A
Power-frequency withstand voltage kv
Creepage distance mm
Weight
RW-15
15
100
10000
125
45
355
8.8
RW-15
15
200
12000
125
45
355
8.8

10kv-15kv

Type
Rated voltage kv
Rated current A
Breaking current A
Impulse voltage bil A
Power-frequency withstand voltage kv
Creepage distance mm
Weight
HRW-12
12
100
10000
110
45
380
3.5
HRW-12
12
200
12000
110
45
380
3.5

10kv-15kv

Type
Rated voltage kv
Rated current A
Breaking current A
Impulse voltage bil A
Power-frequency withstand voltage kv
Creepage distance mm
Weight
HRW-24
27
100
6000
150
65
620
4.3
HRW-24
27
100
8000
150
65
620
4.3

33kv-36kv

Type
Rated voltage kv
Rated current A
Breaking current A
Impulse voltage bil A
Power-frequency withstand voltage kv
Creepage distance mm
Weight
HRW-33
33
100
6000
185
75
1100
5.8
HRW-33
33
200
8000
185
75
1100
5.8

10kv-15kv

Type
Rated voltage kv
Rated current A
Breaking current A
Impulse voltage bil A
Power-frequency withstand voltage kv
Creepage distance mm
Weight
RW-12
12
100
10000
110
40
250
7.3
RW-12
12
200
12000
110
40
250
7.3

15kv-27kv
